AI one-click alarm
DH-X3
AI Campus Anti-Bullying Terminal Standard Model

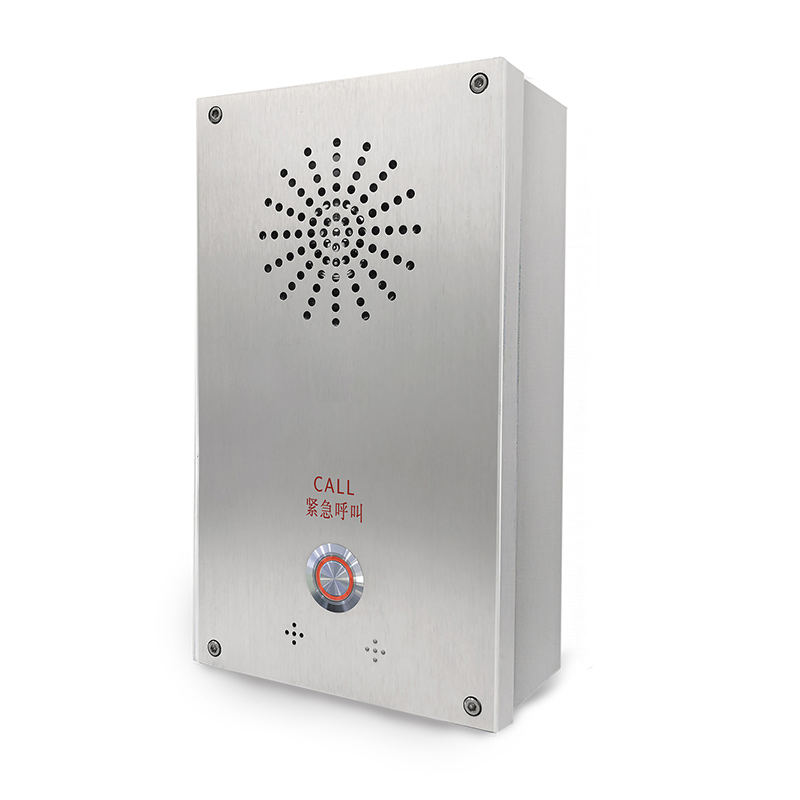

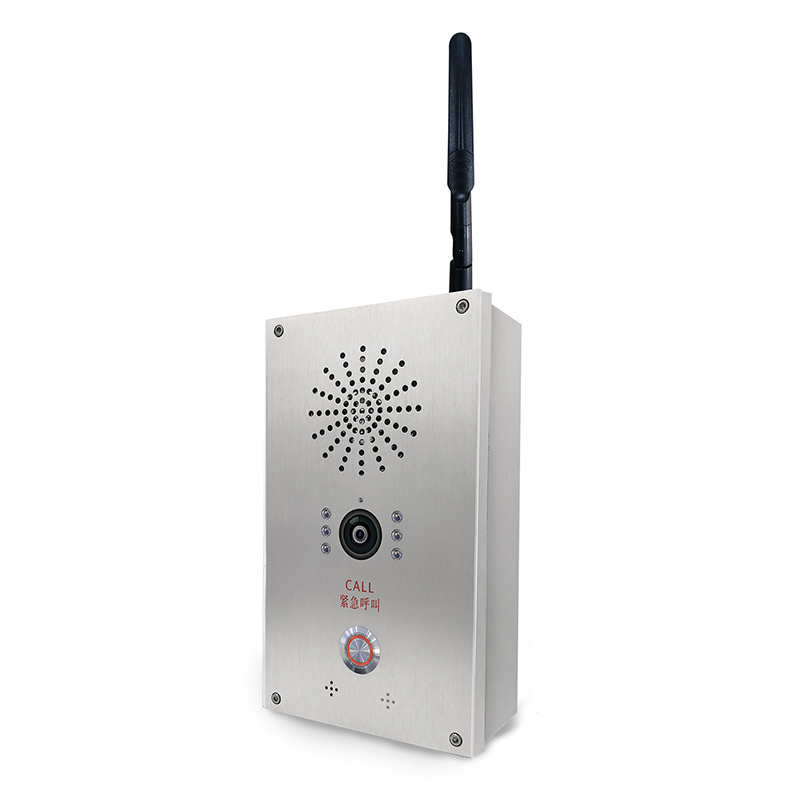

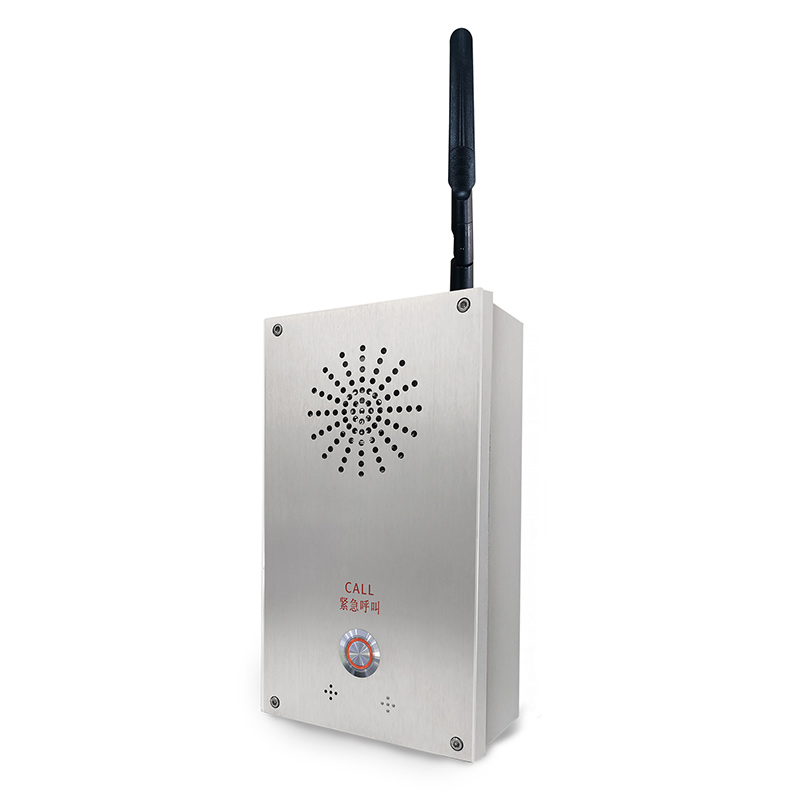

AI One-Click Alarm Terminal – A one-click alarm and intercom broadcasting device designed for various applications. It has an all-weather waterproof design, is durable and easy to use without the need for installation or wiring. It offers multiple features including high-definition video, two-way communication, recording and playback, electronic map display, and broadcasting capabilities.
Features
Scheduling and Command System along with third-party SIP servers, facilitating cross-brand and cross-system interoperabilityCompatible with popular audio codecs including G.711, G.729, and OPUS, as well as video codecs H.264/H.265Supports multiple SIP accounts and multiple SIP linesIt is possible to register on multiple platforms simultaneously, enabling multi-level alerts and synchronous calls across various terminals to prevent missed alarms.Built-in AI noise reduction and echo cancellation algorithms ensure clear and understandable speech in noisy environments.Supports call forwarding, automatic transfer to mobile phones, voice messages, broadcast announcements, and multi-party meeting scheduling.Can identify the words of the victim, the perpetrator, and bystanders, improving detection accuracy through comprehensive recognition.
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating System | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired/WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 5W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 3 digital input ports, 2 digital output ports |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤5W |
| Material | Aluminum alloy brushed panel |
| Dimensional specifications | 207mm×120mm×38mm |
| Installation method | Embedded / Wall-mounted |
| Operating Temperature | -30°C to 75°C |
