AI one-click alarm

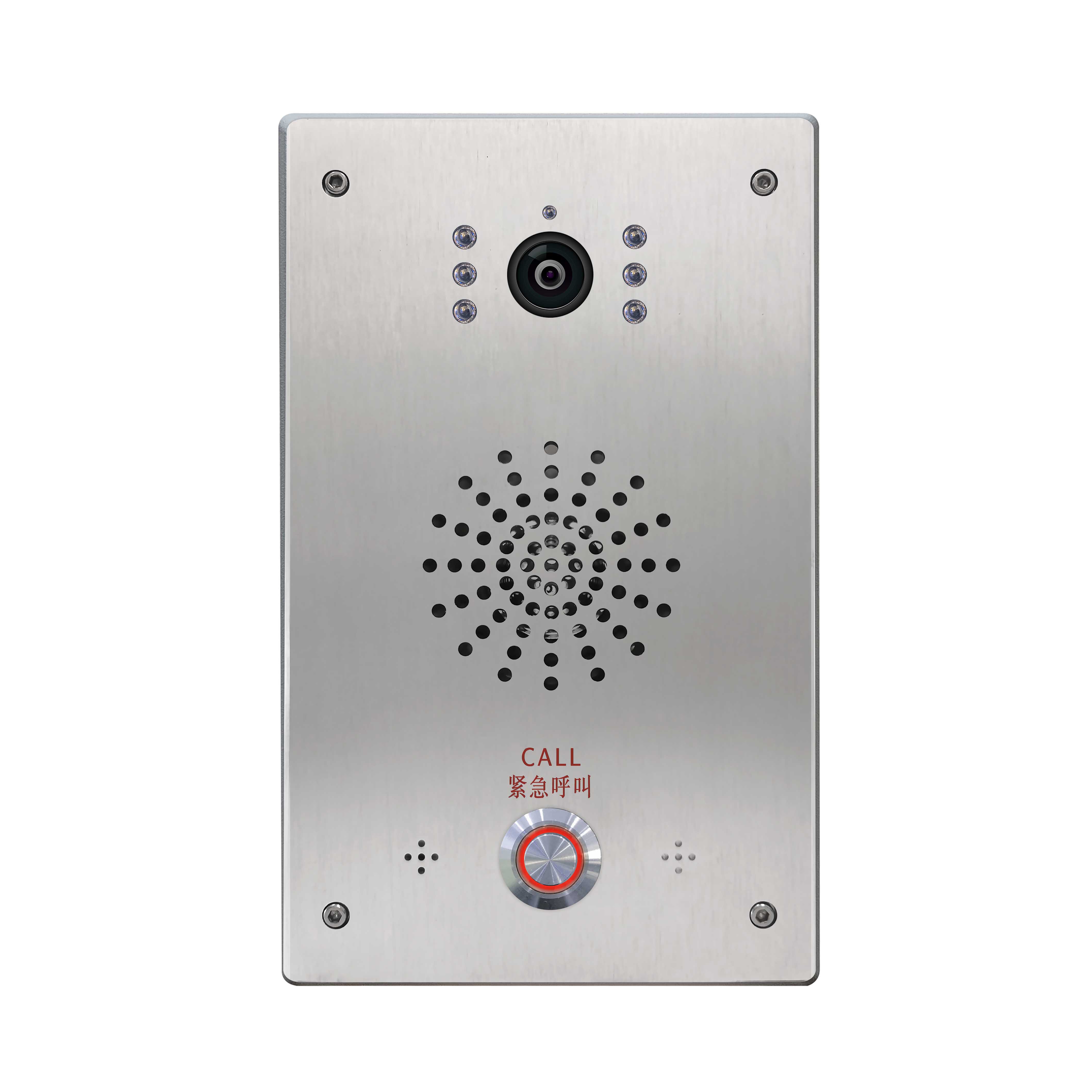

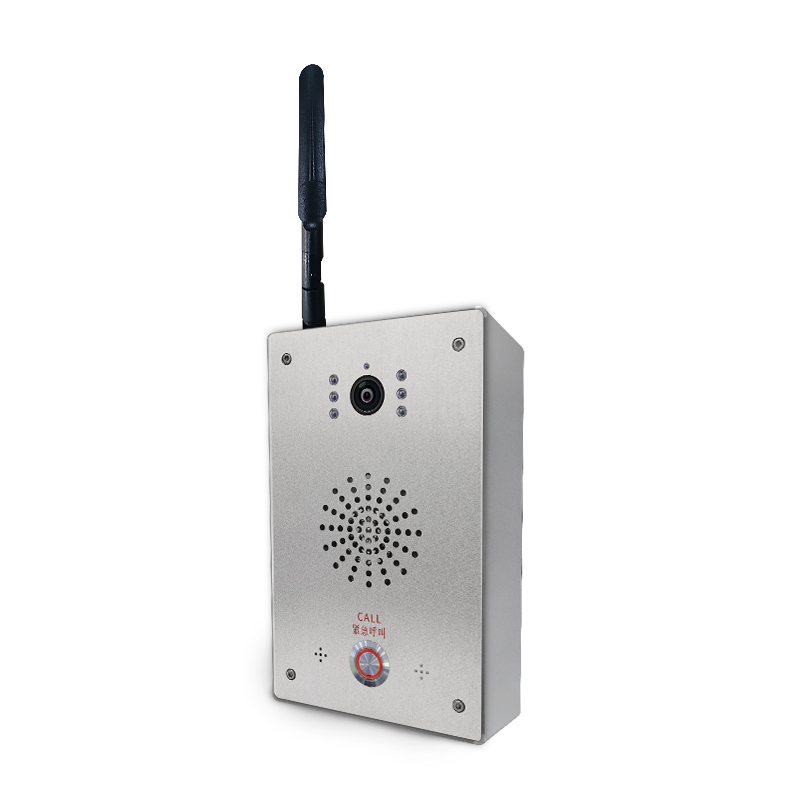

DH-X1
Die-cast AI Campus Anti-Bullying Terminal
Campus Anti-Bullying AI Alarm Visual Terminal, which combines AI behavior analysis, emergency alerts, video calls, and cloud-based management to create an active campus security system.
Features
Noise detection with automatic alarmNatural language semantic generalization alarmAlarm information processing on multiple terminals simultaneously: 6 terminals (server, app, mini-program, web page, agent, management machine)The system includes 58 built-in keywords + 15 custom keywordsSupports keyword and dialect entry on the device sideSupports the centralized distribution of keywords and dialects for anti-bullying platform softwareFull-duplex voice communicationHigh-sensitivity pickup microphone5-watt high-quality speakerIP network architecture, capable of crossing network segments and routersActive listening functionDoes not record normally, automatically records when an alarm is triggeredRecords 20 seconds in advanceReal-time broadcasting, scheduled broadcasting functionSupports wired, WiFi, 4G connectivityIdentify the speech of the victims, the aggressors, and the onlookers to enhance detection accuracy comprehensively
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired /WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 5W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 3 digital input channels, 2 digital output channels |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤8W |
| Material | Aluminum alloy brushed panel |
| Dimensional specifications | 115mm×185mm×40mm |
| Installation method | Wall-mounted |
| Operating temperature | -30°C~75°C |
